RA-7000A

RA-7000A

Analyzer with Seamless Automation from Start to Finish

RA-7000A is a Discrete Direct Purge-Reducing Vaporization Mercury Analyzer that reduces mercury into elemental form and automates the aeration of elemental mercury from solution, performing measurement using a Cold Vapor Atomic Absorption Spectrophotometer (CVAAS, also known as flameless AAS).

RA-7000A

RA-7000A

Analyzer with Seamless Automation from Start to Finish

RA-7000A is a Discrete Direct Purge-Reducing Vaporization Mercury Analyzer that reduces mercury into elemental form and automates the aeration of elemental mercury from solution, performing measurement using a Cold Vapor Atomic Absorption Spectrophotometer (CVAAS, also known as flameless AAS).

Applications

Suitable for a wide variety of post-digested sample solutions and aqueous samples, including drinking water, industrial wastewater, river water, lake water, seawater, and rain-runoff.

Methods

USEPA 245.1  |  USEPA 245.2  |  USEPA 245.5  |  USEPA 7470A  |  USEPA 7471B  |  ASTM D 3223-17  |  EN-1483  |  APHA 3112  |  JIS K0102  |  ISO 12846 and more

View more RA-7000A images:

Easy Modular System

RA-7000A CVAAS Detector

New generation CVAAS detector has an extended measurement range up to 400ppb and detection limit down to 0.5ppt (0.0025ng/5mL)

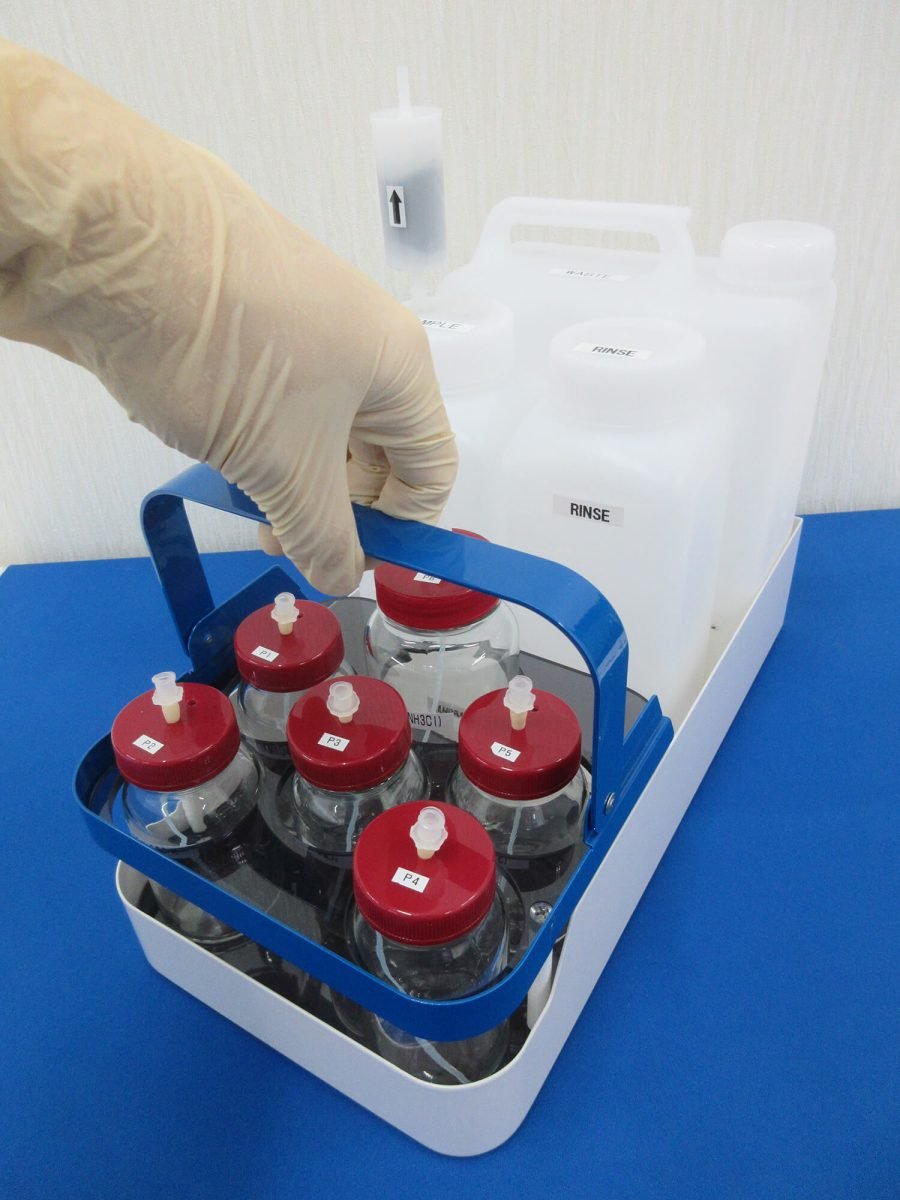

Detachable Reagents Rack

Transport the batch of reagents bottles securely with ergonomic handle designed in the detachable reagent rack. Bring the rack to safer location for reagents refill.

Secured, Upright Waste Tank

1200mL waste tank provided can securely store all acidic waste after measurement.

SANPRA™ Autosampler

RA-7000A CVAAS detector can work with SANPRA™ 3/5/7 . Innovative generation of autosampler – SANPRA™ is designed to be available as options, giving flexibility to user, grow with the laboratory’s needs

Reduces Environmental Burden, Time Saving,
Lower Operational Cost

Save resources, save energy, less waste

RA-7000A is designed to be more environmentally friendly than its predecessor RA-4000A series. We are committed into reducing the chemical burden left on the environment and improving your productivity at the same time. By gathering all the users’ feedbacks, we have improved the RA-7000A designs and optimize the process to achieve:

About

0 %

Reduced Waste Disposal

1200mL ➞ 600mL

Total of

hr
0 hr
0 mins

Shortened Measurement Time

11 hours 50 Minutes ➞ 8 hours 30 minutes

(comparison between RA-7000A with SANPRATM-5 against RA-4500)

About

0 %

Minimized Power Consumption

0.34kg CO₂ reduction per measurement Assuming measurement 3 times/week (150 times a year) 51.6kg CO₂ reduced yearly

SANPRA™ - Flexible Like You Want It to Be

Different capacities and functionalities of autosamplers are available.

The concept of SANPRA™ means flexibility, scalability for our user. One should be able to upgrade and upscale the mercury analysis capacity at any time without purchasing entirely new instruments. Latest RA-7000A is ready to upgrade with any size of SANPRA™ autosampler at any time.

3 Types of SANPRA™ Available:

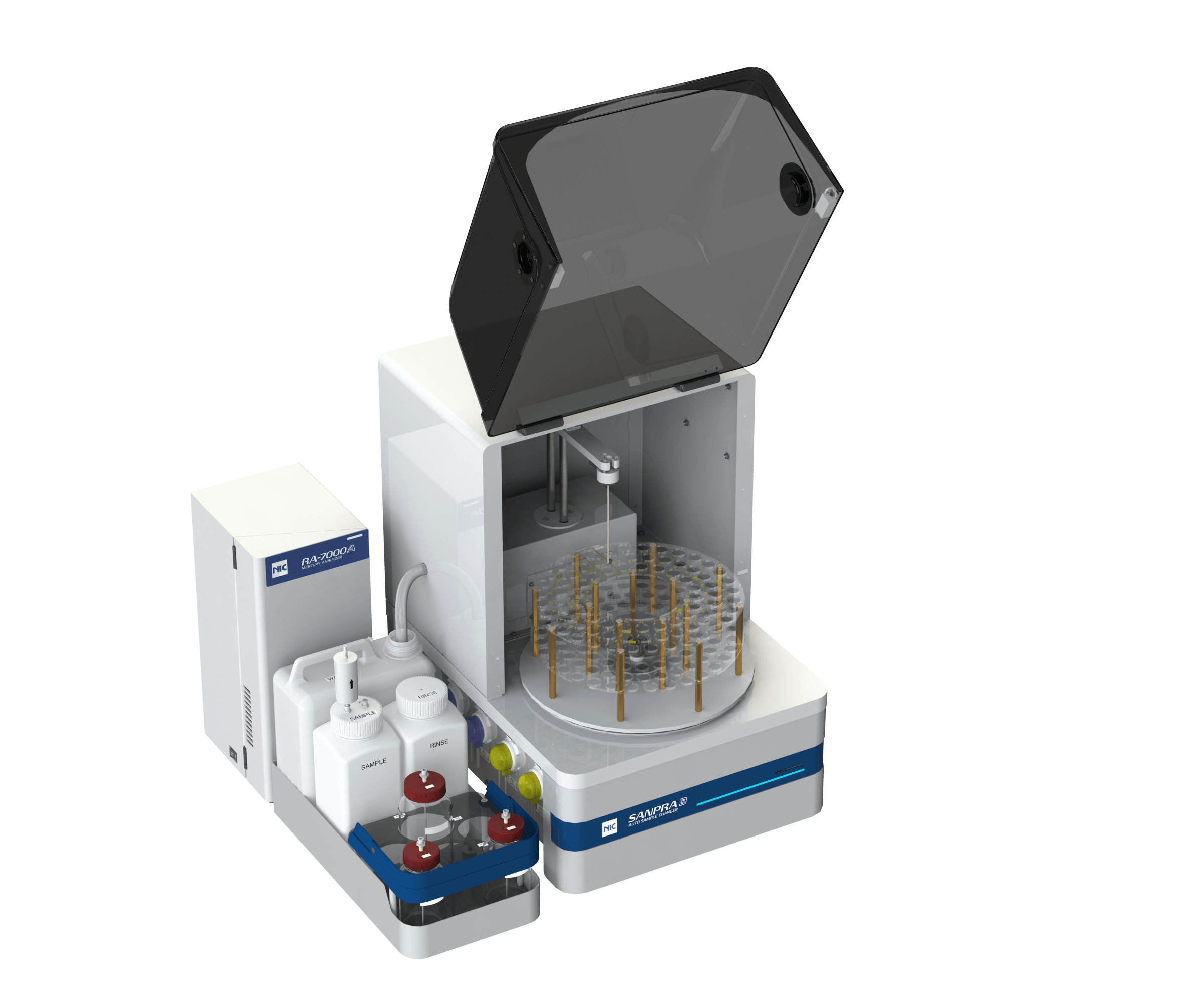

SANPRA™ 3

  • 80 positions of autosampler
  • Automate dispensing of SnCl2, H2SO4 and hydroxylamine hydrochloride
  • Suitable for all kind of aqueous sample after manual wet chemical sample decomposition

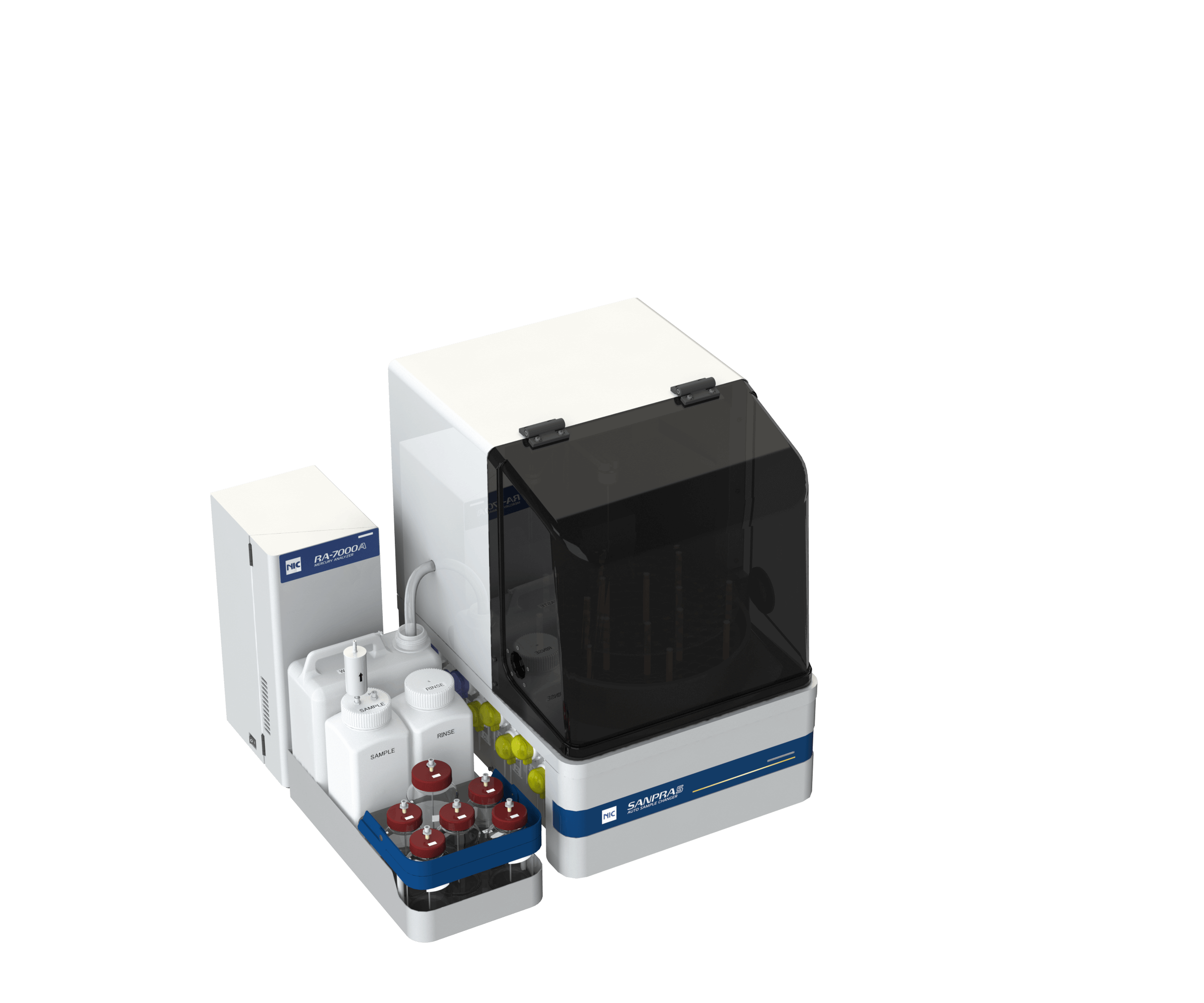

SANPRA™ 5

Accomplish mercury analysis in 10 automated steps
  • 80 positions of autosampler
  • Equip with fully automated acid digestion functions, comply with regulatory methods such as EPA, APHA and more.

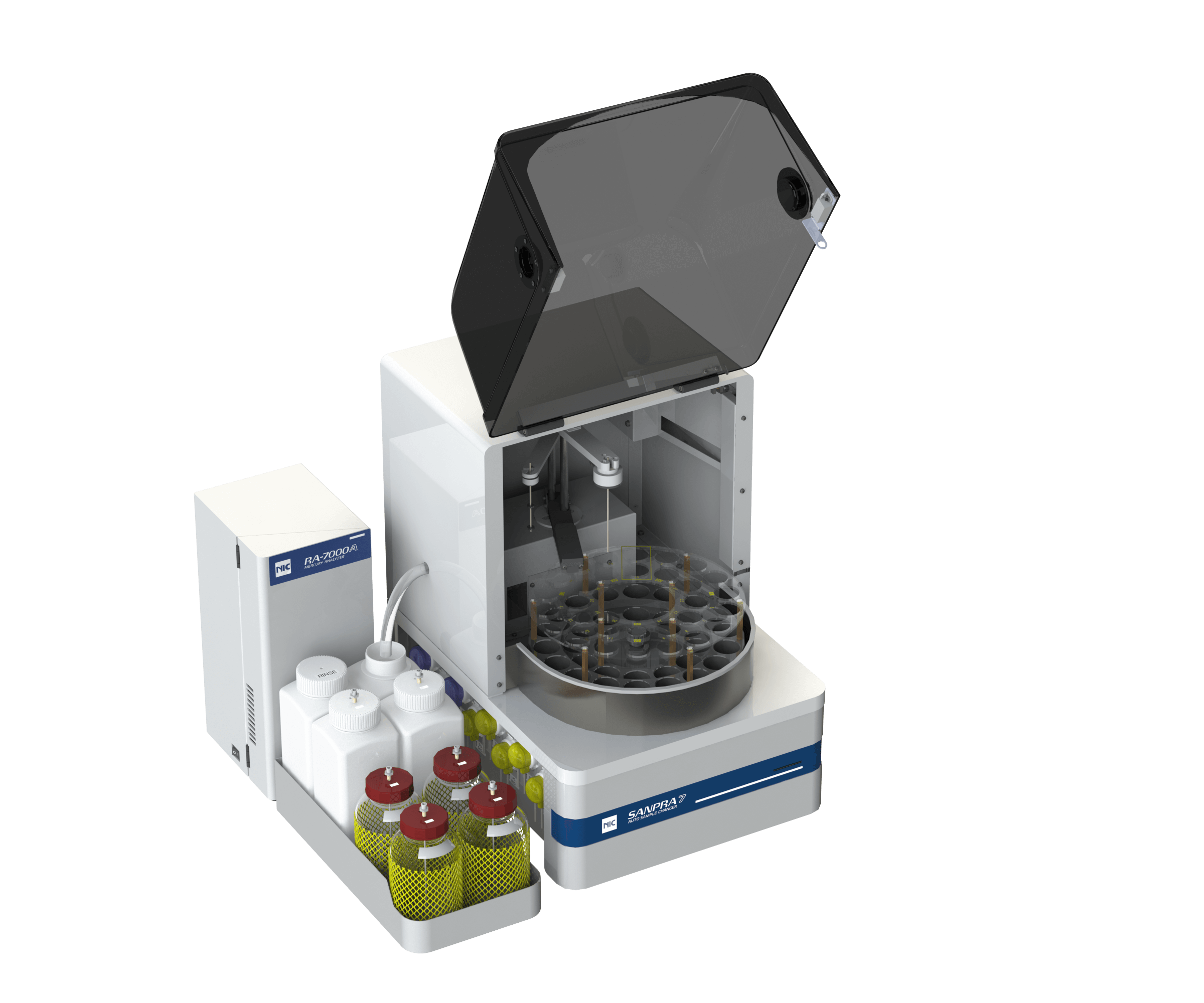

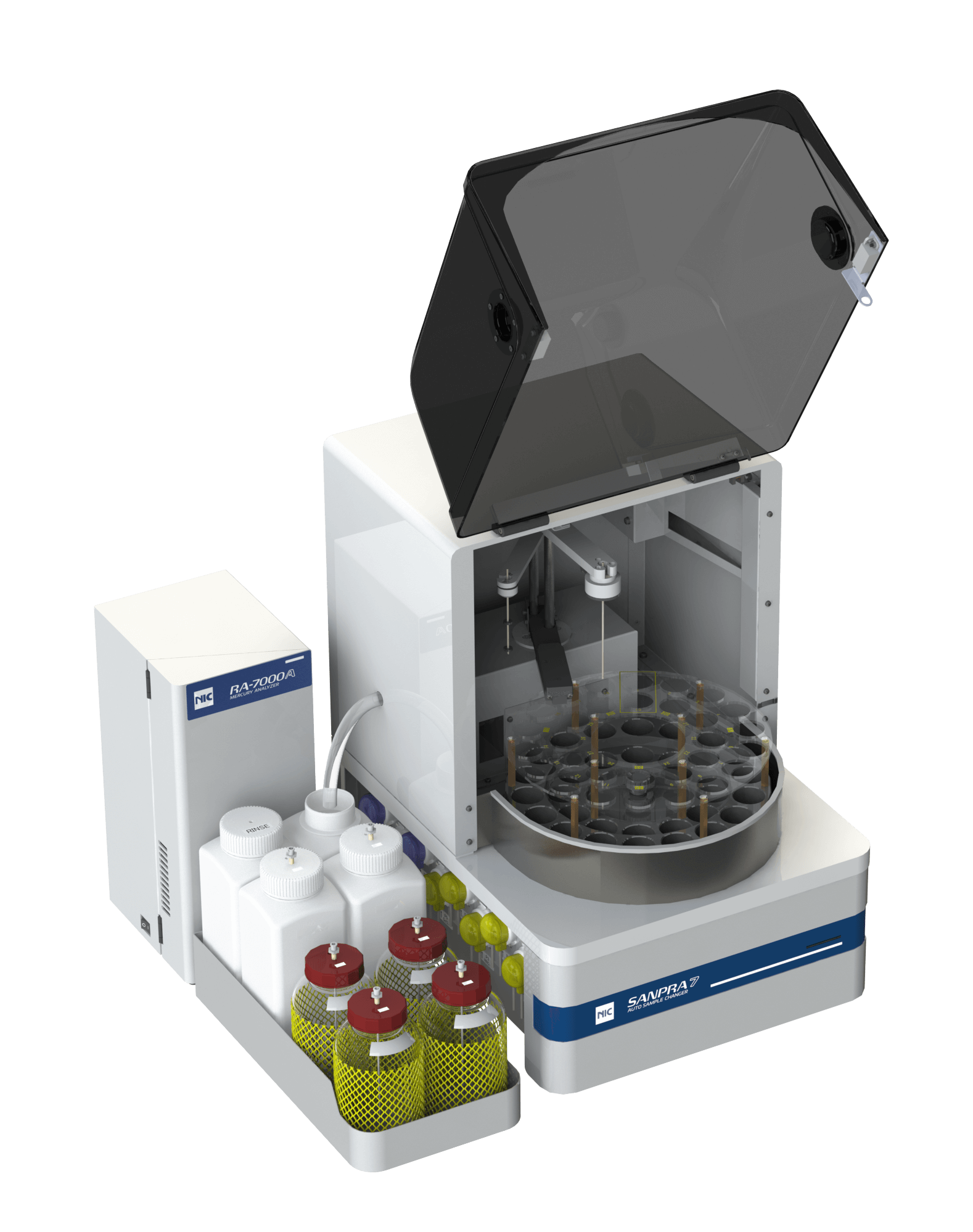

SANPRA™ 7

World’s First Autosampler for Solid Matrices
  • 29-Positions Solid Matrix Acid-Digestion Autosampler
  • Automate the pre-treatment for solid sample matrices such as soil and other solid specimens.

World’s First Autosampler Equipped with
Auto-digestion function

To minimize human handling error & improve mercury measurement precision and accuracy

Incorporating NIC’s cutting-edge innovation and engineering, RA-7000A series continues its success from RA-4500 predecessor to automate the entire sample digestion and analysis process with compliance with regulatory methods such as EPA and APHA.

It comes with programmable software where users can program up to 10 steps of sample digestion steps with proportionally reduced reagents usage and faster measurement time compared.

Finally, the automation results in minimized human handling error and improved mercury measurement performance.

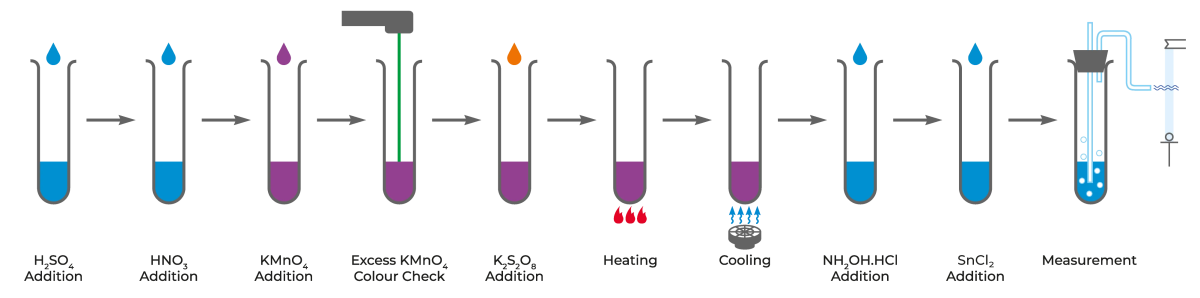

Automate the reagent dispensing precisely that includes

Sulfuric acid, Nitric acid, Potassium permanganate, Peroxide potassium disulfate, Hydroxylamine hydrochloride, Tin (II) chloride.

Durable acid-resistant Aluminum block

to prevent system corrosion from acidic fumes and corrosive reagents.

LED Verification of Excess KMnO4

Excess of KMnO4 is required in regulatory method.

Reliable Infrared Heating Technology

to provide, rapid, uniform heating with precise temperature control and effective cooling process.

We believe innovation must be ergonomic and practical too:

Convenient Side Door Handle

to ensure all users can close and open SANPRA™ cover safely.

Intelligent Sample Tube Existence Sensing

To prevent reagents from dispensing without a sample tube, creating a safe system for users to operate.

Built-in Chamber Lighting

to allow checking of sample status at a glance
*Optional in SANPRA 3;
Available in SANPRA™ 5 & 7*

Wide Opening Frontage

To ensure no obstruction during sample loading/unloading.

We believe innovation must be ergonomic and practical too:

Convenient Side Door Handle

to ensure all users can close and open SANPRA™ cover safely.

Intelligent Sample Tube Existence Sensing

To prevent reagents from dispensing without a sample tube, creating a safe system for users to operate.

Built-in Chamber Lighting

to allow checking of sample status at a glance
*Available in SANPRA™ 5 & 7 only*

Wide Opening Frontage

To ensure no obstruction during sample loading/unloading.

RA-7 WIN - Intuitive & Practical Software

Brand New Interface with Easy-to-Understand Graphics

Live Animation

To illustrate system’s status easily

LIMS-Compatible

CSV File can be exported

Easy Access of System Log Files

For prompt troubleshooting

Controls up to 3 SANPRA™ at the same time or a combination of SANPRA and RH Gas Module

RA-7 WIN -
Intuitive & Practical Software

Brand New Interface with Easy-to-Understand Graphics

Live Animation

To illustrate system’s status easily

LIMS-Compatible

CSV File can be exported

Easy Access of System Log Files

For prompt troubleshooting

Dilution Tabulation of Sample and Standard Solutions

Controls up to 3 SANPRA™ at the same time or a combination of SANPRA and RH Gas Module

Featured EPA 245.1 QC Validation (Optional)

Laboratory that uses this method is required to operate a formal quality control (QC) program. RA-7WIN Software can perform the stringent requirements of method EPA 245.1 that includes:

Discrete-Direct Purge Technique Overcomes Mercury Memory Effect

In this DDP technique, RA-7000A handles each sample in a Discrete, independent sample tube. Each sample is therefore isolated from surface contact with any other samples in the analytical batch to be measured.

The Direct-Purge technique is then used to extract and transfer the converted Hg0 from each sample tube and into the detector for measurement. Since only mercury vapor contacts the flow path, sample-to-sample memory effects and carryover from over-range samples are virtually eliminated.

Evaluation of Mercury Memory Effect using DDP Technique in RA-7000A
50 ppb (high concentration) measurement

Versatile High Sample Throughput Configurations of RA-7000A with SANPRA™

With the new generation of RA-7000A with SANPRA™, user can create any configurations they need.

Start with the basic –

Flexible as you want it to be

Start using RA-7000A with a basic reducing vaporization/Impinger Unit, RH Gas Module or a SANPRA of your choice. Scale up or upgrade only when you need to.

Use RA-7 with 1 unit of SANPRATM and upscale it when necessary

Use with a RH Gas Module to start analyzing Gaseous Elemental Mercury trapped using Mercury Collector Tube.

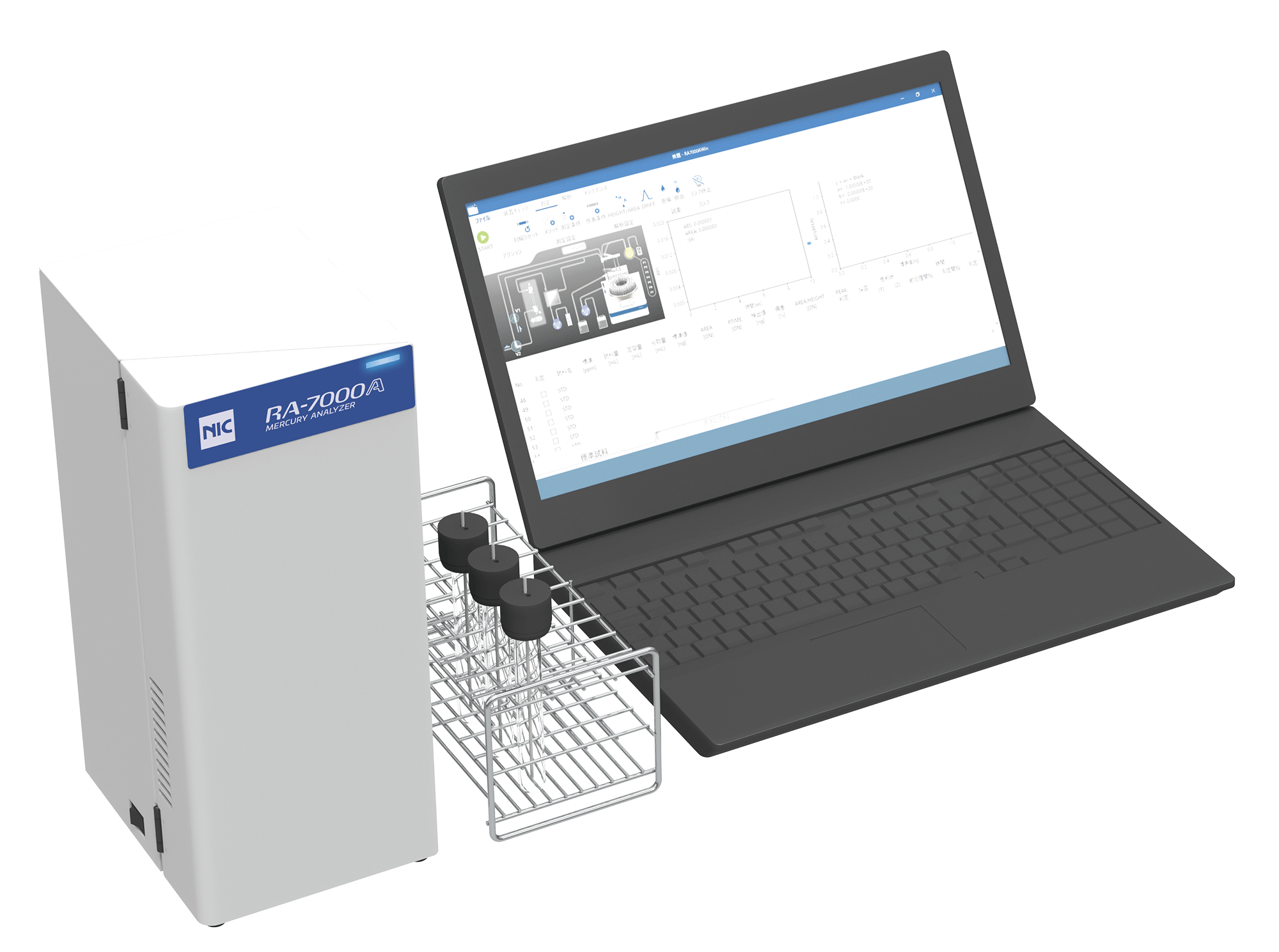

Start using RA-7 with a basic impinger unit (5/20/100/250mL)

Productivity of up to 240 samples per batch

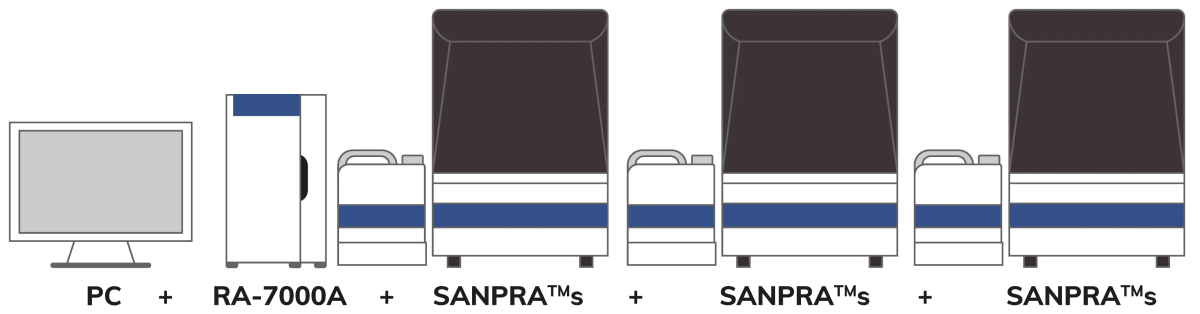

Choose up to 3 SANPRA at the same time.

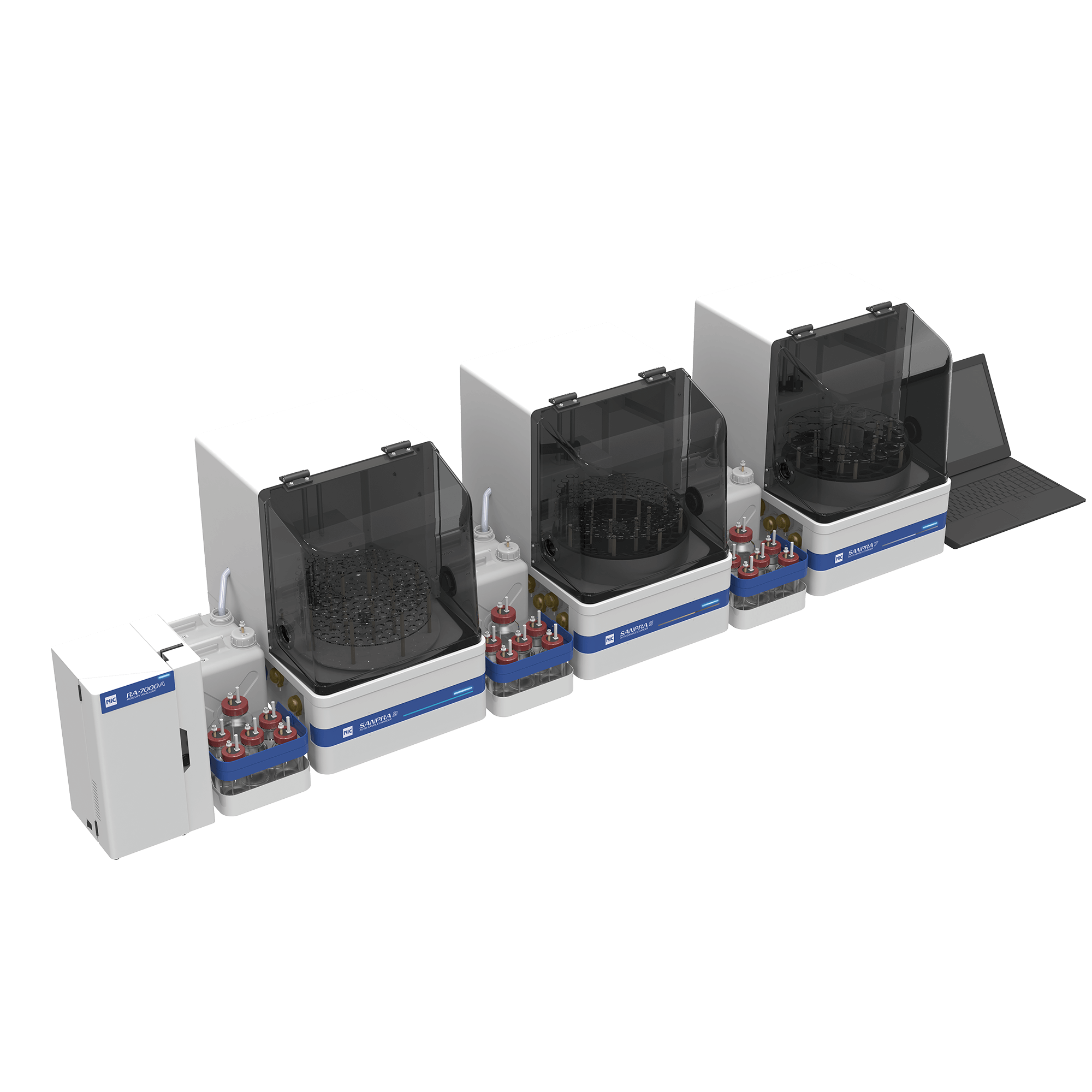

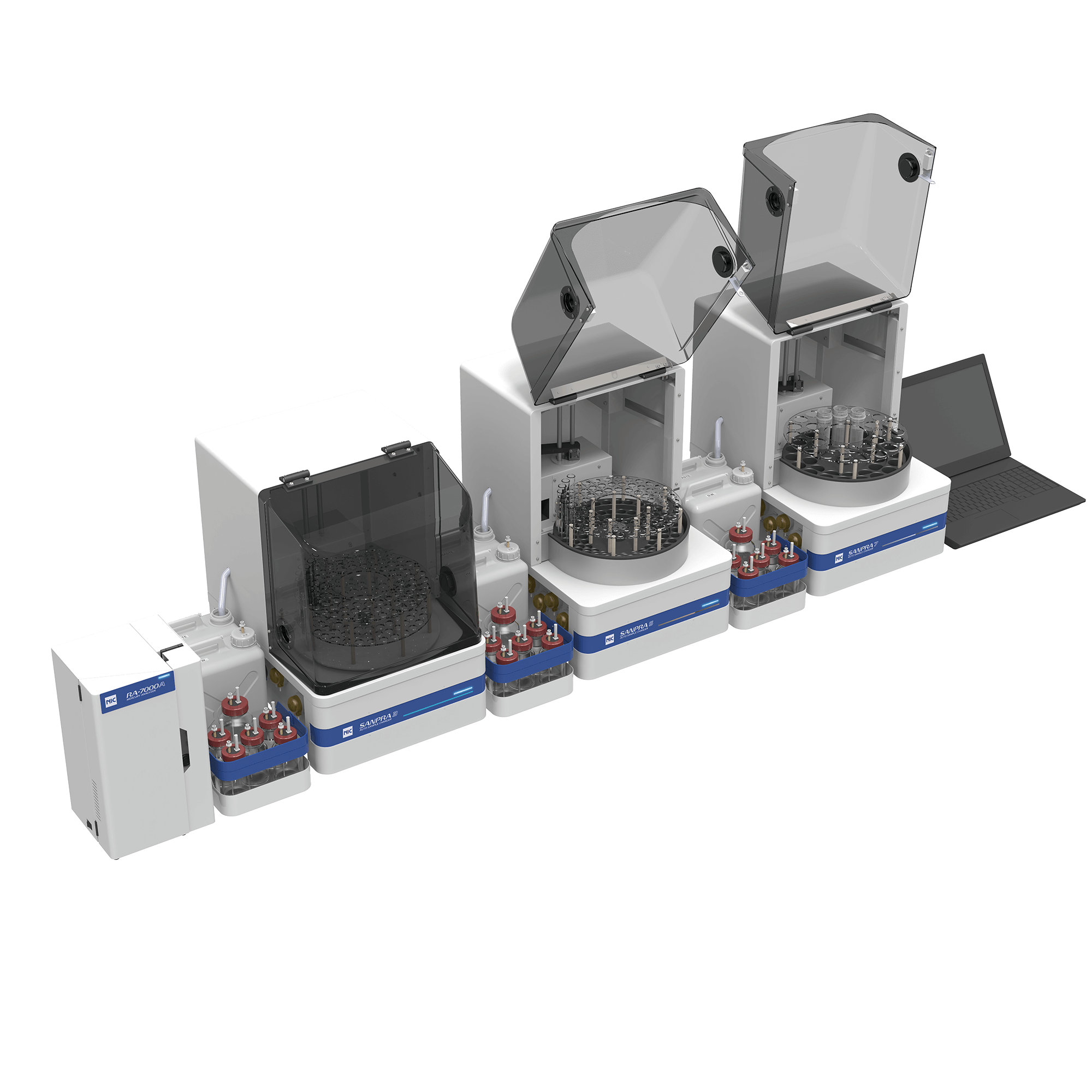

RA-7000A can be configured with up to 3 untis of SANPRA™ at the same time. E.g., getting 3 units of SANPRA™ 3 (80 positions) allows user to load up to 240 samples, enhancing laboratory’s productivity.

Mixed combination of SANPRA™ can be configured too.

Increased Functionality/Scope of Sample Matrices

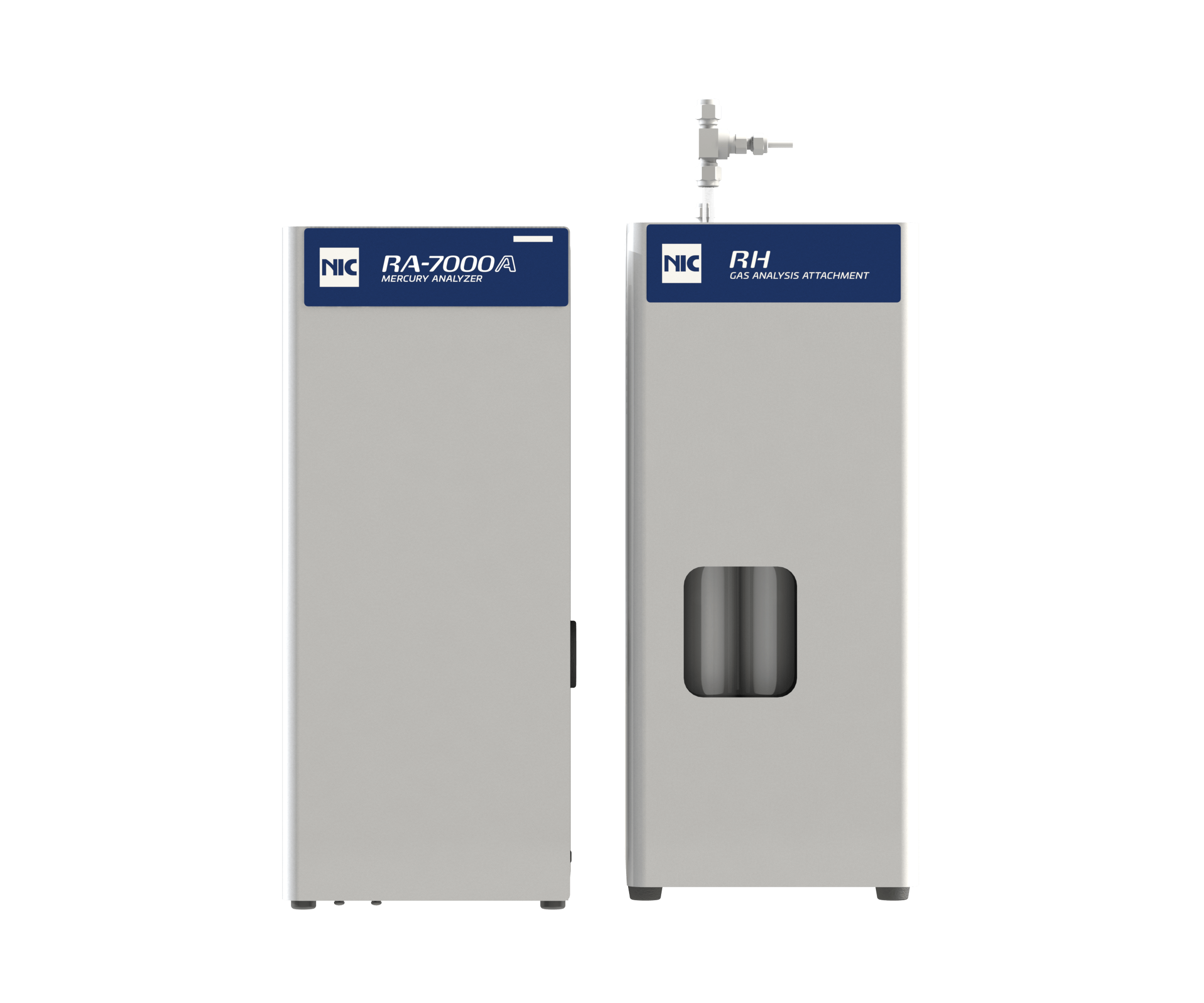

RA-7000A with a combination of SANPRA and RH Gas Module
RA-7000A can operate a combination of SANPRA™ RH Gas Module is a mercury collector tube thermal desorption unit where trapped gaseous elemental mercury (GEM) are desorbed and sent to CVAAS detector in RA-7000A for measurement.

In a single platform, RA-7000A can analyze solid matrices (chemically digested), aqueous solution, and gaseous sample, offering an intelligent smart combo that provides ultimate flexibility, growing with your laboratory’s needs.
