EMP Series

EMP-3

Portable Mercury Survey Meter

Compact, sensitive and accurate

EMP-3 is our 3rd generation of Field-Portable Mercury Survey Meter that is designed for on-site measurement of gaseous elemental mercury (GEM) in workplace ambient air for occupational safety, health, and hygiene.

Applications

Mostly employed for workplace air measurement for occupational safety. It can be used for direct measurement of gaseous elemental mercury in natural gas, shale gas, and LPG from Tedlar bag, etc.

Guidelines

WHO ACGIH  OSHA  USEPA  NIOSH  ATSDR and more

Features

User-Friendly – Easy to Use Touchscreen Graphical User Interface (GUI)

EMP-3 is equipped with a very user-friendly and responsive interface – 4.3’ LCD High-Resolution Color Touchscreen. All functional buttons are available on the same screen, allowing for easy field operation and enhancing every user’s experience. The LCD screen is also splash-proof.

Anyone can learn and operate EMP-3 with ease!

EMP-3
Image15-01 (1)

Superior Detection Range
– Detection Limit from 0 to 2000 µg/m3

With NIC’s continual optics design research and advancement, the new generation EMP-3 is equipped with an extended linear detection range of up to 2,000 µg/m3. Such a wide dynamic detection range enables users to cover a broad range of applications, responding quickly to pressing situations.

Fully Functional & Accurate
Portable Mercury Survey Meter

EMP-3 is equipped with a robust and highly sensitive non-dispersive double-beam cold vapor atomic absorption spectrometry (CVAAS) detector for mercury measurement. All gaseous elemental mercury (GEM) that is drawn into EMP-3 is measured by the absorbance at wavelength 253.7 nm.

Built-in GPS Function
– Measurement with Peace of Mind

To conduct multiples measurements in the field, it is rather bothersome and inconvenient to take note of every location data to the measurement readings manually.

EMP-3 is now equipped with a built-in GPS where every mercury measurement done by the EMP-3 will also record the set of coordinates of that measuring location simultaneously with the mercury reading. This helps make the handling and operating process easier and provide users with peace of mind.

Incredible Field-Portability

Light-Weight & Compact

EMP-3 weighs only 1.6 kg and has a comfortable, streamlined body with a dimension of 207W x 115D x 140H (mm). It is well-designed to sling around the body as a handy and compact device for field operation.

Convenient – Powered by battery

With its compact and lightweight body, the battery-operated EMP-3 meter can be conveniently transported and used in the field where electricity source is scarce or unavailable. All on-site mercury measurement is made possible and convenient.

Options - Expanding Applications

Mercury vapor can be present in different concentration levels, depending on whether mercury is used as raw materials in the production process or as a by-product, polluting the environment as gaseous to the air or liquid to the effluent.
On-site mercury measurement needs can be slightly unpredictable. EMP-3 has the versatility to configure for expanded applications.

Hi-Lutor – Exploring the Extreme

Hi lutor

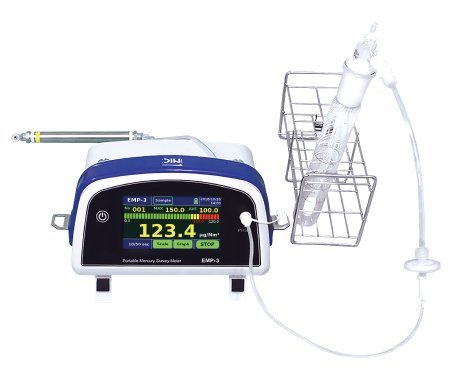

 AQUA Kit – For mercury measurement in aqueous sample

EMP---Auqa-Kit

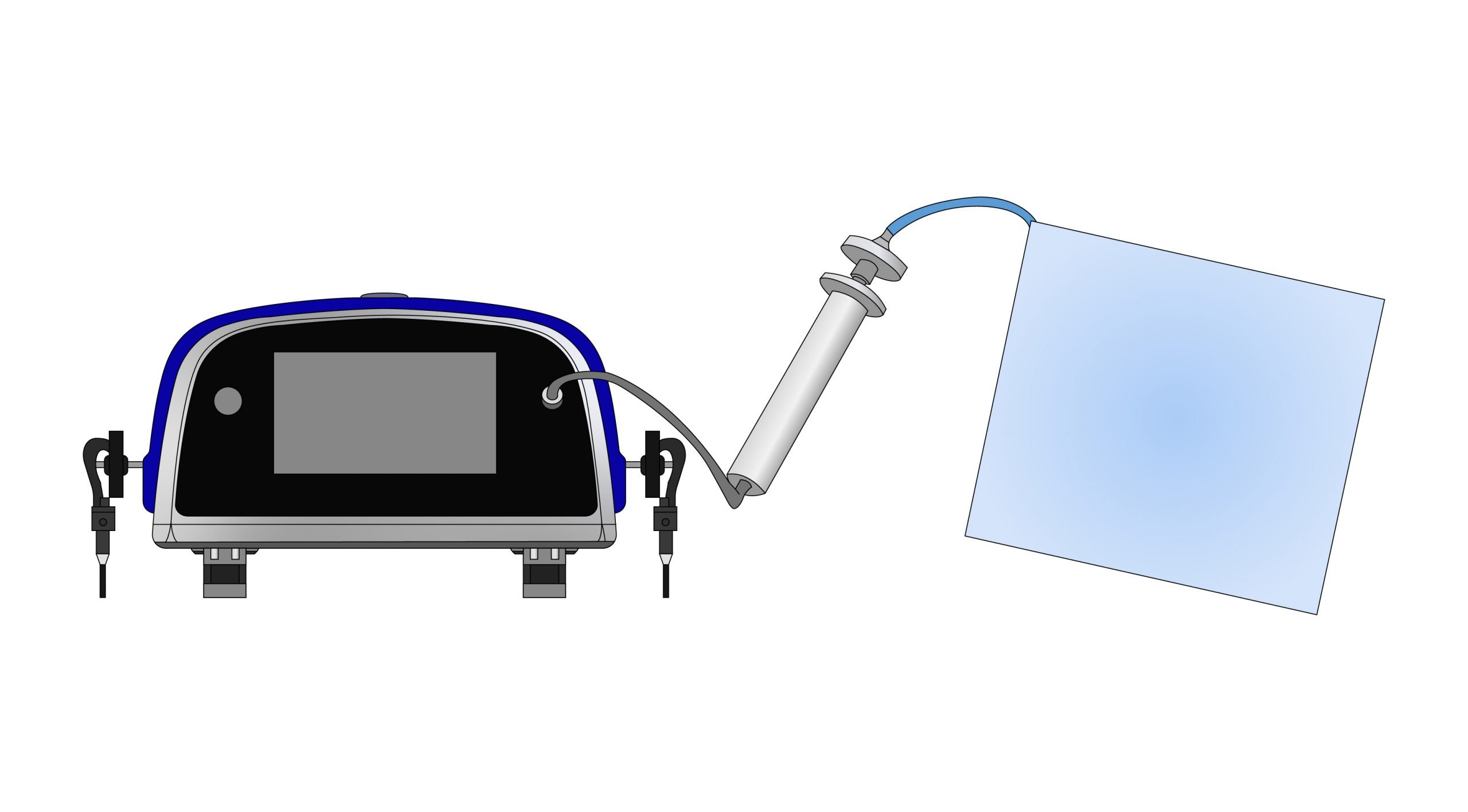

Tedlar Bag –  For Mercury in Natural Gas / LPG measurement

NIC (illustration)

EMP-Gold+

Another model in EMP Series which is engineered for trace level of on-site mercury measurement gaseous matrices.

have any questions? let's connect

Other Series

MA Series

A state-of-the-art Direct Mercury Analyzer

  • No sample digestion needed
  • Fast analysis time
  • Highly accurate
  • Solid , liquid, gaseous matrices

PE Series

In full compliance with UOP-98-20, PE Series can fulfill all analysis requirements of liquid hydrocarbon samples.

WA Series

Mercury analyzer for ultra-trace level analysis in gaseous matrices. Featuring Dual Gold Amalgamation technique and various capacity options.

Hi lutor

How does it work?

Utilizing the concept of dynamic flow dilution, the Hi-Lutor option extends the EMP-3 measuring range up to 20,000 µg/m3, allowing mercury measurements in areas that have unexceptionally high mercury levels. Thus, showcasing the versatility of the EMP-3 survey meter.

EMP---Auqa-Kit

How does it work?

AQUA Kit is made available to enable EMP-3 to function as a detector for aqueous reducing vaporization CVAAS measurement, performing sub-ppb detection levels measurement on-site.

Applications

Drinking Water  Lake Water  River Water  Waste Effluent and more

Methods

USEPA 245.1, 245.2, 245.5, 7470A, 7471B  EN-1483  ASTM D 3223-17  APHA 3112  JIS K0102 | ISO 12846 and more

AQUA Kit is a manual setup of Reducing Vaporization Technique using an impinger set.

  • The sample tube is filled with the desired aqueous sample. Reducing agent SnCl2 and H2SO4 are added into the sample tube to convert all Hg2+ into Hg0.

Sn2+ + Hg2+ → Hg0 + Sn4+

  • Hg0 is purged from the sample solution and is transferred into CVAAS detector for measurement.
  • Detection is capable down to the low parts-per-billion (ppb) levels.

Note: To measure Total Mercury from aqueous sample, the sample must be digested chemically to break down organic mercury before reducing vaporization.

Without sample digestion, only the Hg2+ and Hg0 can be measured in this technique.

How Does It Work?

EMP-3 can also be used to measure Natural Gas (NG) or Liquefied Petroleum Gas (LPG) collected in a Tedlar bag.

Applications

Natural Gas | LPG

How Does It Work?

  • Place the EMP-3 setup in a fume hood or connect the EMP-3 outlet to an exhaust line.
  • Select NG/LPG (Natural Gas) MEAS GAS on EMP-3.
  • Collect the sample gas into a Tedlar bag.
  • Connect the Tedlar bag to the EMP-3 probe.
  • Sample gas in the Tedlar is drawn directly into EMP-3 to perform auto zeroing followed by measurement.
  • Real-time mercury reading will be displayed on the EMP-3 LCD screen.
